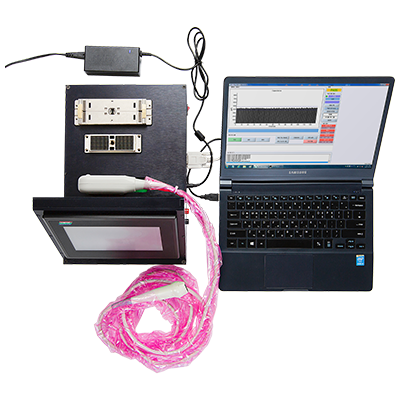

MultiCaps
• Multi Channel Capacitance Measurement System
• Measuring Capacitance of ultrasound probe up to 192Channel at maximum (based on DLP260) : System pinmap should be provided. Possible to Make connectors by specification.
• Capacitance measurement of Micro coaxial cable - the maximum up to 1,000pF
• Easy to move portable system
• Measuring Capacitance of ultrasound probe up to 192Channel at maximum (based on DLP260) : System pinmap should be provided. Possible to Make connectors by specification.
• Capacitance measurement of Micro coaxial cable - the maximum up to 1,000pF
• Easy to move portable system
Features
• High speed measurement :
It takes about 10sec in measuring 192 Channel. Possible to do GO/NO Test
• Easy to move and convenient work :
On Board Portable system for which peripheral devices are not needed (AC 110/220V) : Easy operation and measurement using GUI design and 4.3inch Touch LCD Panel. Adjustable Measurement scale
• Data management and report :
Possible to do simultaneous control on PC and display measurement result and save using a dedicated software.
• Possible to do customized design (EEPROM Writing, LCD location, Alarm, Output data format, and others.)
